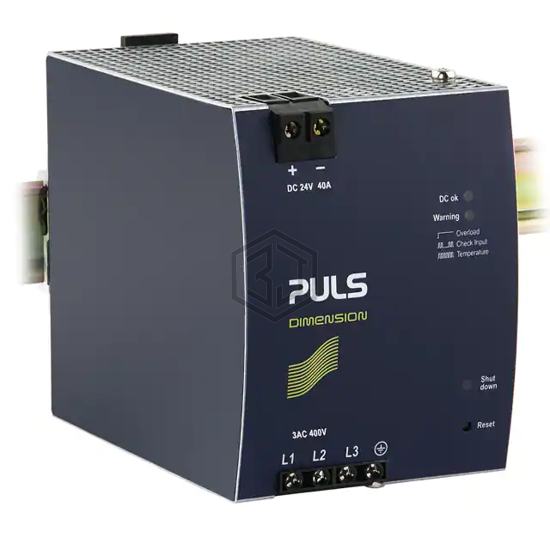

AC/DC CONVERTER 24V 960W
XT40.242 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. AC/DC CONVERTER 24V 960W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 40A, size / dimension 6.18" L x 3.78" W x 4.88" H (157.0mm x 96.0mm x 124.0mm), number of outputs 1.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 360 ~ 552 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | 500 V |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 95.5% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | IP20, PFC |
| Size / Dimension | 6.18" L x 3.78" W x 4.88" H (157.0mm x 96.0mm x 124.0mm) |
| Approval Agency | EAC, IEC, UL |
| Standard Number | 508; 60950-1; 61010-2-201 |
Submit your RFQ for XT40.242 and get a quote within 24 hours.
