AC/DC CONVERTER 24V 480W

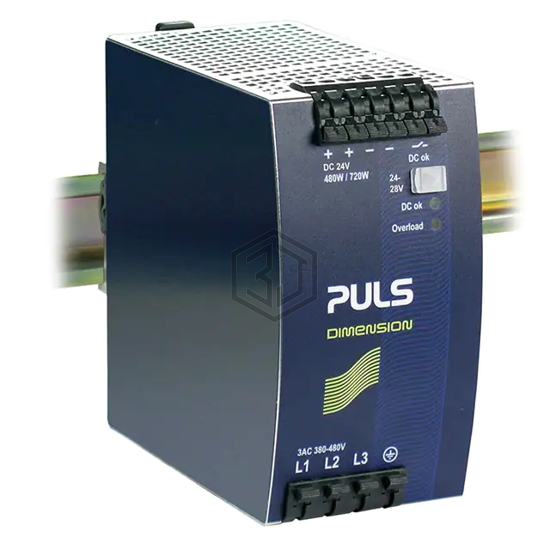

QT20.241-C1 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm), number of outputs 1.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 323 ~ 552 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Efficiency | 94.8% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Conformal Coating, Load Sharing, PFC |
| Size / Dimension | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) |
| Approval Agency | ABS, CSA, DNV GL, EAC, EN, IEC, SEMI, UL |
| Standard Number | Class I Div 2; F47; 508; 50155; 60950-1; 61010-2-201 |
