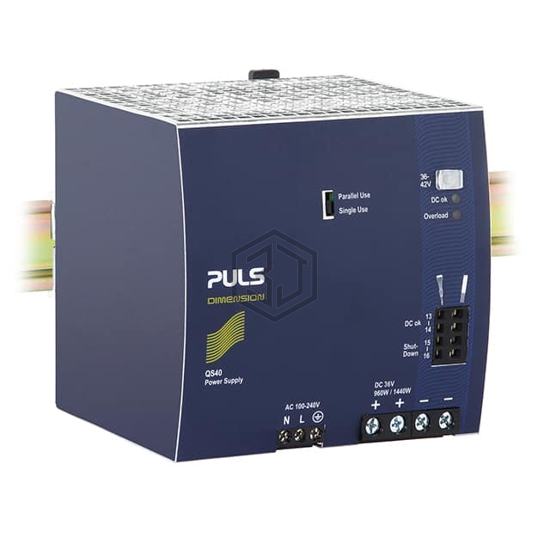

AC/DC CONVERTER 36V 960W
QS40.361 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. AC/DC CONVERTER 36V 960W. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 26.7A, size / dimension 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm), number of outputs 1.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 26.7A |
| Power (Watts) | 960W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Efficiency | 94.6% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC |
| Size / Dimension | 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm) |
| Approval Agency | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
| Standard Number | Class I Div 2; 508; 60950-1; 61010-2-201 |
Submit your RFQ for QS40.361 and get a quote within 24 hours.
