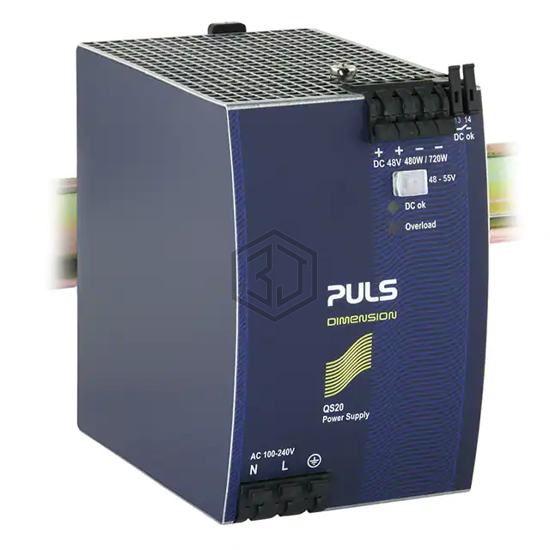

AC/DC CONVERTER 48V 480W
QS20.481 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. AC/DC CONVERTER 48V 480W. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm), number of outputs 1.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 276 VAC |
| DC Voltage - Input (Min) | 88V |
| DC Voltage - Input (Max) | 187V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 480W |
| Voltage - Isolation | 500 V |
| Applications | Hazardous Locations, ITE (Commercial) |
| Efficiency | 94.3% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC |
| Size / Dimension | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) |
| Approval Agency | ABS, CSA, DNV GL, EAC, IEC, UL |
| Standard Number | Class I Div 2; 508; 60950-1; 61010-2-201 |
Submit your RFQ for QS20.481 and get a quote within 24 hours.
