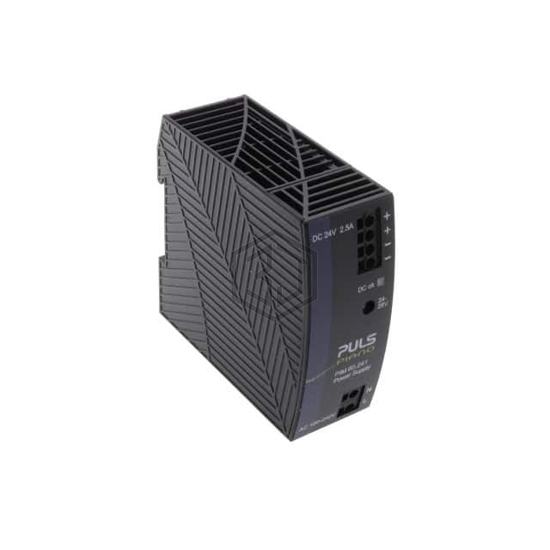

POWER SUPPLY, 60W, 100-240VAC 1P
PIM60.241 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. POWER SUPPLY, 60W, 100-240VAC 1P. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 3.58" L x 1.42" W x 3.54" H (91.0mm x 36.0mm x 90.0mm), number of outputs 1.
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60W |
| Voltage - Isolation | 500 V |
| Applications | Industrial, ITE (Commercial), Laboratory |
| Efficiency | 91.8% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.58" L x 1.42" W x 3.54" H (91.0mm x 36.0mm x 90.0mm) |
| Approval Agency | CB, CE, cULus |
| Standard Number | 61010-1; 62368-1; UL 508 |
