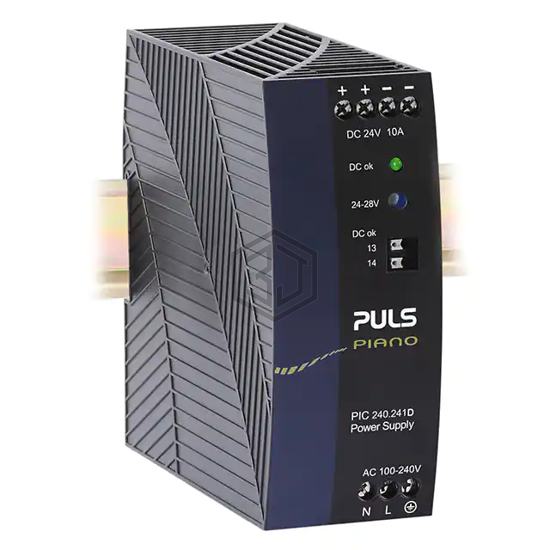

AC/DC CONVERTER 24V 240W
PIC240.241D is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. AC/DC CONVERTER 24V 240W. Key specifications: operating temperature 0°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.88" L x 1.93" W x 4.88" H (124.0mm x 49.0mm x 124.0mm), number of outputs 1.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Efficiency | 95.2% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.88" L x 1.93" W x 4.88" H (124.0mm x 49.0mm x 124.0mm) |
| Approval Agency | EAC, IEC, UL |
| Standard Number | 61010-2-201; 62368-1 |
Submit your RFQ for PIC240.241D and get a quote within 24 hours.
