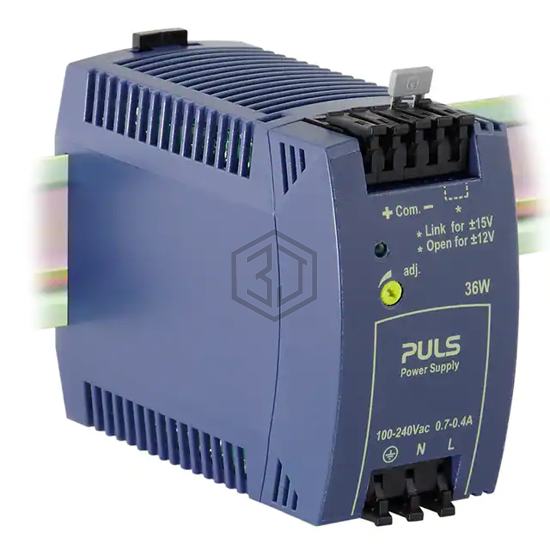

AC/DC CONVERTER +/-12V 36W
ML30.106 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. AC/DC CONVERTER +/-12V 36W. Key specifications: operating temperature 0°C ~ 70°C (With Derating), current - output (max) 2.8A, 1.4A, size / dimension 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm), number of outputs 2.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 2 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.8A, 1.4A |
| Power (Watts) | 36W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) |
| Approval Agency | ABS, DNV GL, EAC, IEC, NEC, UL |
| Standard Number | Class 2; 508; 60950-1; 61010-2-201 |
Submit your RFQ for ML30.106 and get a quote within 24 hours.
