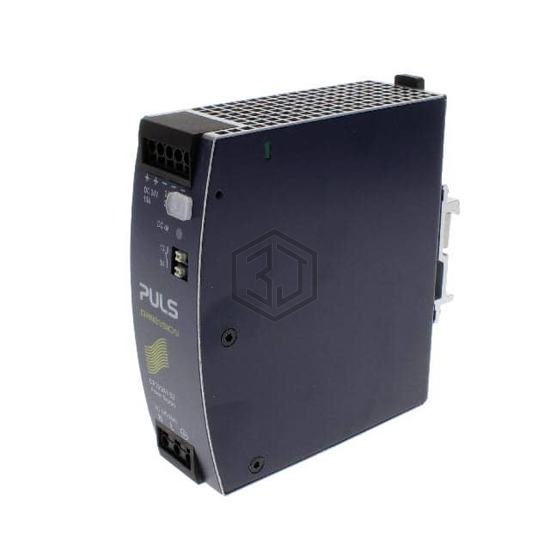

POWER SUPPLY, 240W, 100-240VAC 1
CP10.241-S2 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. POWER SUPPLY, 240W, 100-240VAC 1. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 150V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 500 V |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 93.6% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) |
| Approval Agency | ATEX, EAC, IEC, IECEx, UL |
| Standard Number | Class I Div 2; 60950-1; 61010-2-201; 62368-1 |
Submit your RFQ for CP10.241-S2 and get a quote within 24 hours.
