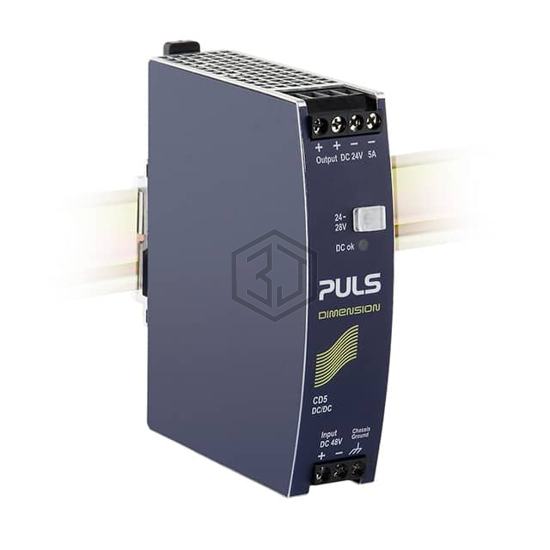

DC/DC CONVERTER 24V 120W
CD5.242 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. DC/DC CONVERTER 24V 120W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm), number of outputs 1.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 36V |
| DC Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 120W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 90.3% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | - |
| Size / Dimension | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) |
| Approval Agency | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL |
| Standard Number | Class I Div 2; 508; 60950-1 |
