DC/DC CONVERTER, 50W, 18-32VDC I

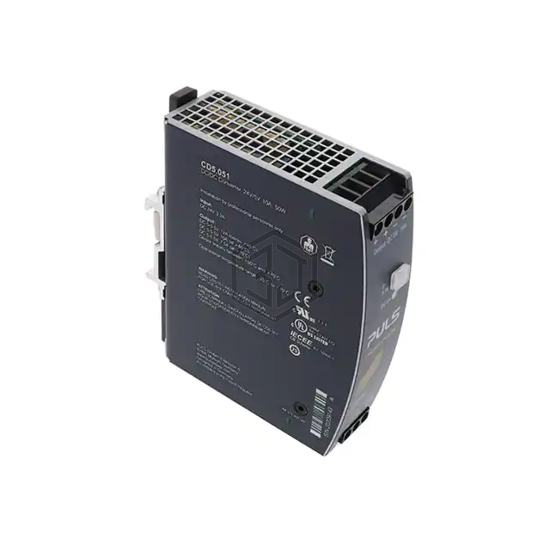

CD5.051 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. DC/DC CONVERTER, 50W, 18-32VDC I. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm), number of outputs 1.
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 32.4V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50W |
| Voltage - Isolation | 500 V |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 81.5% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output |
| Size / Dimension | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) |
| Approval Agency | CB, CE, cULus, cURus |
| Standard Number | 508; 60950-1 |
