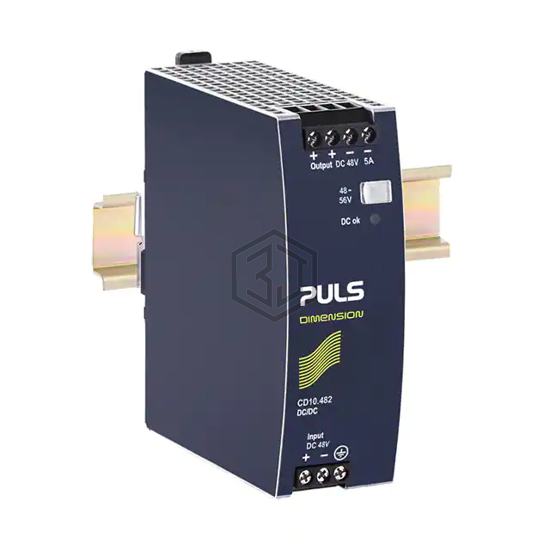

DC/DC CONVERTER, 240W, 36-60VDC
CD10.482 is a Industrial, DIN Rail Power Supplies manufactured by PULS, LP. DC/DC CONVERTER, 240W, 36-60VDC. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 4.61" L x 1.65" W x 4.88" H (117.0mm x 42.0mm x 124.0mm), number of outputs 1.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 36V |
| DC Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 240W |
| Voltage - Isolation | 500 V |
| Applications | Hazardous Locations, Industrial, ITE (Commercial), Laboratory |
| Efficiency | 95.1% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 4.61" L x 1.65" W x 4.88" H (117.0mm x 42.0mm x 124.0mm) |
| Approval Agency | EAC, IEC, UL |
| Standard Number | 60950-1; 61010-2-201 |
