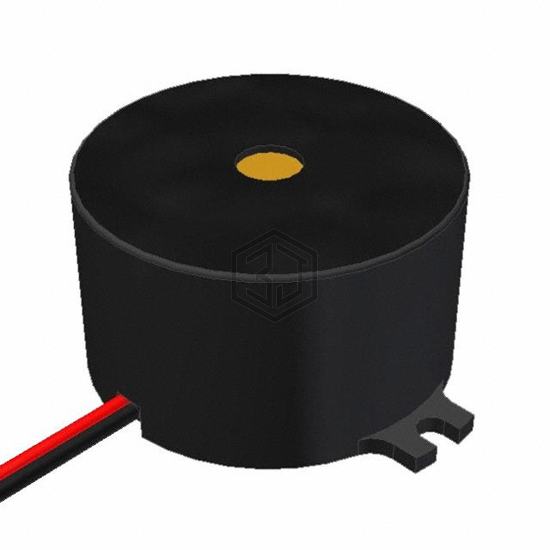

BUZZER PIEZO 90V 40MM FLANGE
X-4032-TF-LW105-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 90V 40MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 80°C, voltage - rated 90 V, current - supply 9mA.
In Stock: 312
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | AC, DC |
| Voltage - Rated | 90 V |
| Voltage Range | 15 ~ 130V |
| Frequency | 3.2kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 97dB @ 90V, 10cm |
| Current - Supply | 9mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
