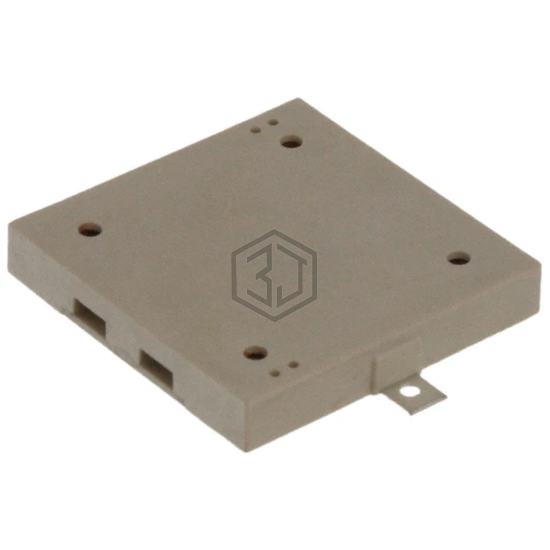

BUZZER PIEZO 5V 16X16MM SMD
SMT-1640-S-2-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 5V 16X16MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 120°C, voltage - rated 5 V, current - supply 3mA.
In Stock: 54,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 25V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 5V, 10cm |
| Current - Supply | 3mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 120°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.630" L x 0.630" W (16.00mm x 16.00mm) |
| Height - Seated (Max) | 0.106" (2.70mm) |
