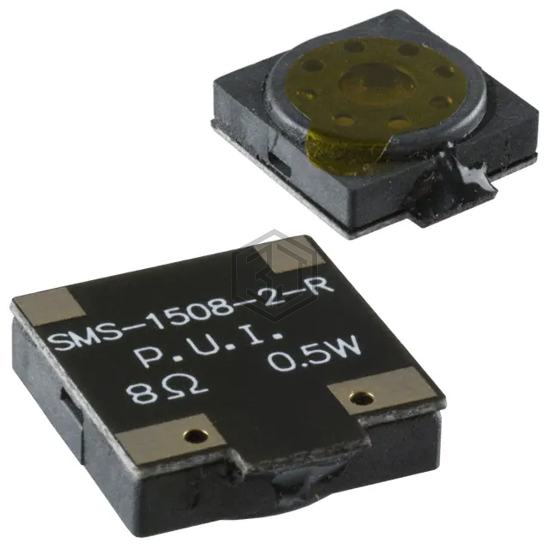

SPEAKER 8OHM 300MW TOP PORT 87DB
SMS-1508-2-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 300MW TOP PORT 87DB. Key specifications: size / dimension 0.591" L x 0.591" W (15.00mm x 15.00mm), termination Solder Pads, power - max 500 mW, frequency range 850 Hz ~ 20 kHz.
In Stock: 800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 850 Hz ~ 20 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 300mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Square |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | SmCo |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
