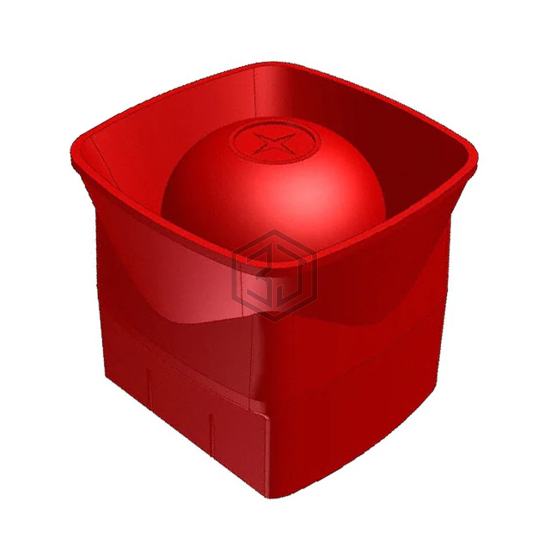

BUZZER PIEZO 24V 109X109MM BASE
AW-30SBR is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 24V 109X109MM BASE. Key specifications: mounting type Base Mount, operating temperature -25°C ~ 55°C, voltage - rated 24 V, current - supply 190 ~ 260mA.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 9 ~ 28V |
| Frequency | Multiple |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 108dB @ 24V, 100cm |
| Current - Supply | 190 ~ 260mA |
| Port Location | Top |
| Operating Temperature | -25°C ~ 55°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP42 |
| Mounting Type | Base Mount |
| Termination | - |
| Size / Dimension | 4.291" L x 4.291" W (109.00mm x 109.00mm) |
| Height - Seated (Max) | 3.760" (95.50mm) |
Submit your RFQ for AW-30SBR and get a quote within 24 hours.
