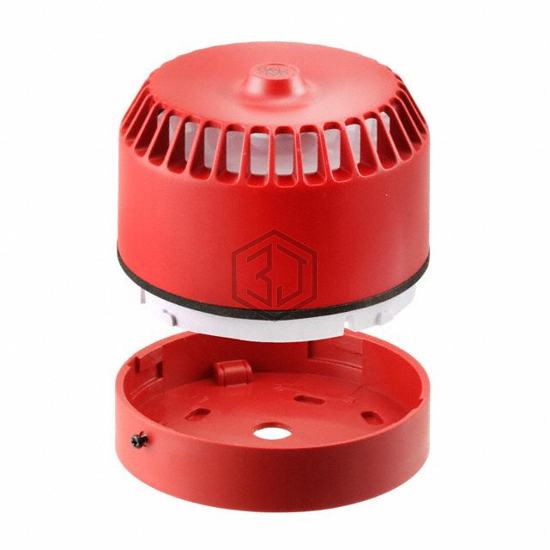

BUZZER PIEZO 24V 93MM BASE
AW-15SBR is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 24V 93MM BASE. Key specifications: mounting type Base Mount, operating temperature -10°C ~ 60°C, voltage - rated 24 V, current - supply 6 ~ 33mA.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 9 ~ 28V |
| Frequency | Multiple |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 84dB @ 24V, 100cm |
| Current - Supply | 6 ~ 33mA |
| Port Location | Top |
| Operating Temperature | -10°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Mounting Type | Base Mount |
| Termination | - |
| Size / Dimension | 3.661" Dia (93.00mm) |
| Height - Seated (Max) | 2.972" (75.50mm) |
Submit your RFQ for AW-15SBR and get a quote within 24 hours.
