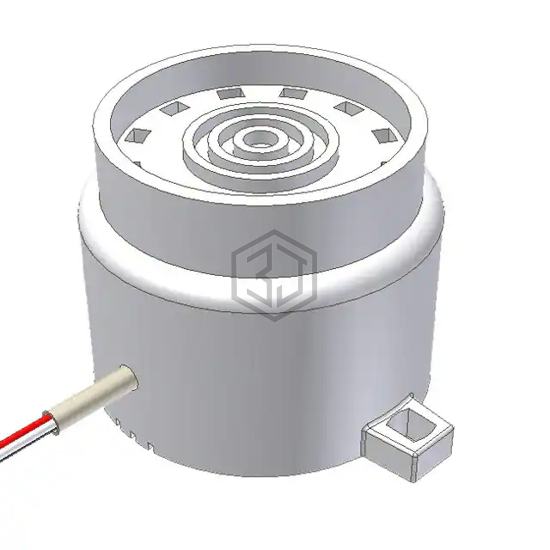

BUZZER PIEZO 24V 52.5MM FLANGE
AW-10FW is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 24V 52.5MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -25°C ~ 70°C, voltage - rated 24 V, current - supply 8 ~ 35mA.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 9 ~ 28V |
| Frequency | Multiple |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 88dB @ 24V, 100cm |
| Current - Supply | 8 ~ 35mA |
| Port Location | Top |
| Operating Temperature | -25°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 2.067" Dia (52.50mm) |
| Height - Seated (Max) | 1.713" (43.50mm) |
