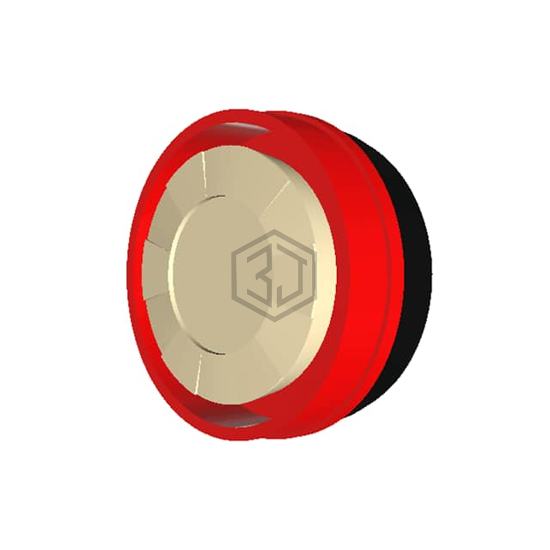

BUZZER MAGNETIC 90V 54.5MM SMD
AT-5535-T-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER MAGNETIC 90V 54.5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 60°C, voltage - rated 90 V, current - supply 30mA.
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 90 V |
| Voltage Range | 12 ~ 150V |
| Frequency | 3kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 115dB @ 90V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 2.146" Dia (54.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
Submit your RFQ for AT-5535-T-R and get a quote within 24 hours.
