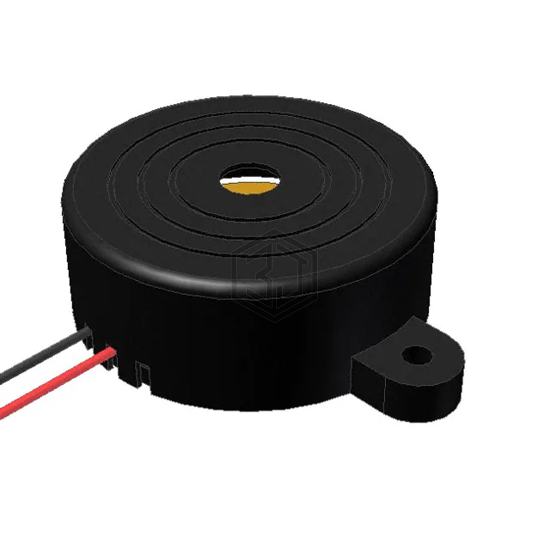

BUZZER PIEZO 10V 41.8MM FLANGE
AT-4230-TF-LW135-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 10V 41.8MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 85°C, voltage - rated 10 V, current - supply 9mA.
In Stock: 10,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 96dB @ 10V, 10cm |
| Current - Supply | 9mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.646" Dia (41.80mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
Submit your RFQ for AT-4230-TF-LW135-R and get a quote within 24 hours.
