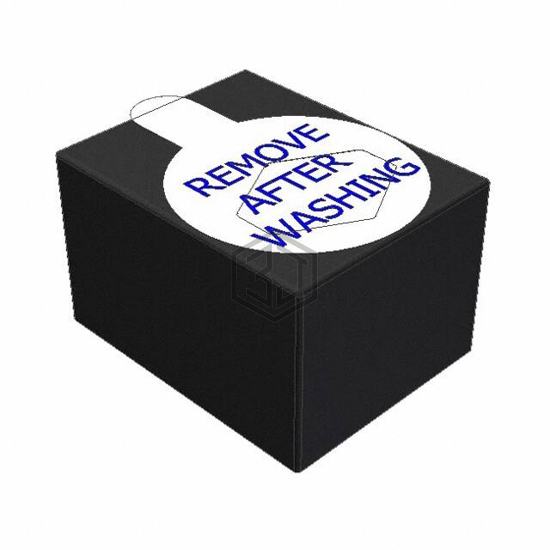

BUZZER MAGNETIC 1.5V 18X14MM TH
AT-1820-TWT-1V-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER MAGNETIC 1.5V 18X14MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, voltage - rated 1.5 V, current - supply 40mA.
In Stock: 7,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1 ~ 2V |
| Frequency | 2.048kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 1.5V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 80°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.709" L x 0.551" W (18.00mm x 14.00mm) |
| Height - Seated (Max) | 0.421" (10.70mm) |
Submit your RFQ for AT-1820-TWT-1V-R and get a quote within 24 hours.
