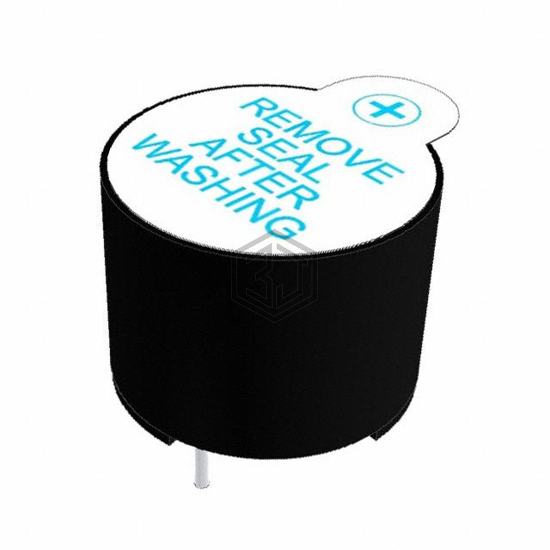

BUZZER MAGNETIC 12V 12MM TH
AT-1224-TWT-12V-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER MAGNETIC 12V 12MM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 12 V, current - supply 40mA.
In Stock: 5,781
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 15V |
| Frequency | 2.4kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.362" (9.20mm) |
Submit your RFQ for AT-1224-TWT-12V-R and get a quote within 24 hours.
