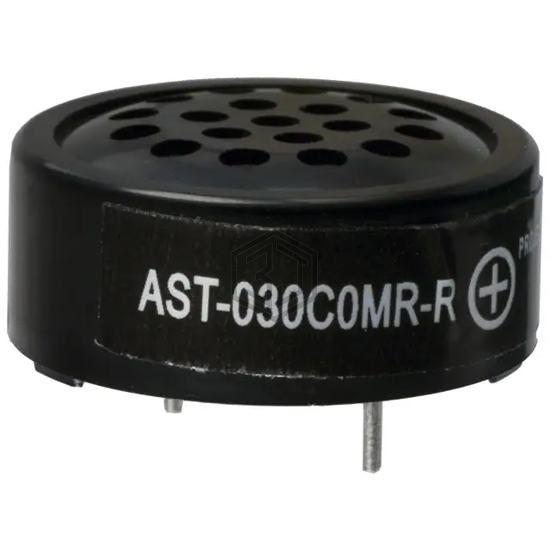

SPEAKER 100OHM 150MW TOP PORT
AST-030C0MR-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 100OHM 150MW TOP PORT. Key specifications: size / dimension 1.169" Dia (29.70mm), termination PC Pins, power - max 300 mW, frequency range 1.2 kHz ~ 10 kHz.
In Stock: 1,074
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.2 kHz ~ 10 kHz |
| Frequency - Self Resonant | 1200Hz |
| Impedance | 100 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 150 mW |
| Power - Max | 300 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 1.169" Dia (29.70mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
Submit your RFQ for AST-030C0MR-R and get a quote within 24 hours.
