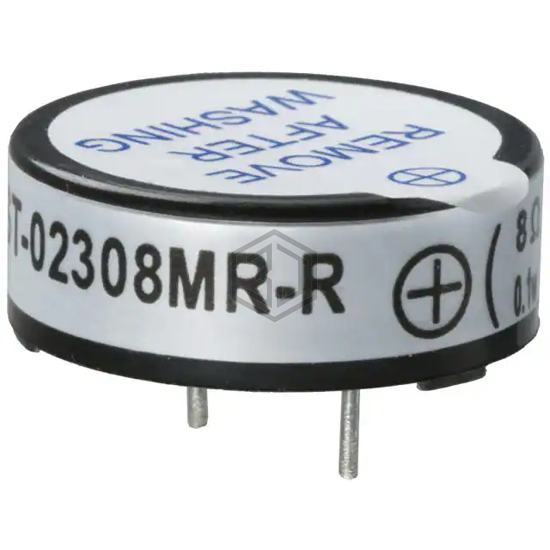

SPEAKER 8OHM 100MW TOP PORT 75DB
AST-02308MR-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 100MW TOP PORT 75DB. Key specifications: size / dimension 0.906" Dia (23.00mm), termination PC Pins, power - max 200 mW, frequency range 600 Hz ~ 20 kHz.
In Stock: 11,599
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 75.00 |
| Efficiency - Testing | 100mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 100 mW |
| Power - Max | 200 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.906" Dia (23.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
Submit your RFQ for AST-02308MR-R and get a quote within 24 hours.
