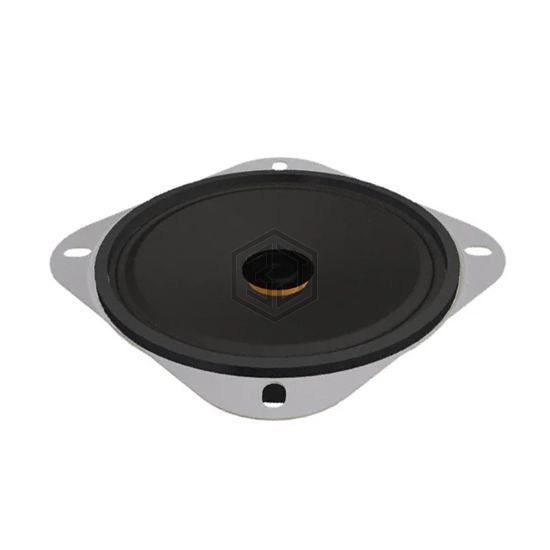

SPEAKER 8OHM 4W TOP PORT 90DB
AS07708PS-2-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 4W TOP PORT 90DB. Key specifications: size / dimension 3.032" L x 3.032" W (77.00mm x 77.00mm), termination Solder Eyelet(s), power - max 8 W, frequency range 250 Hz ~ 10 kHz.
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 250 Hz ~ 10 kHz |
| Frequency - Self Resonant | 250Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 4 W |
| Power - Max | 8 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
