SPEAKER 8OHM 3W TOP PORT 86DB

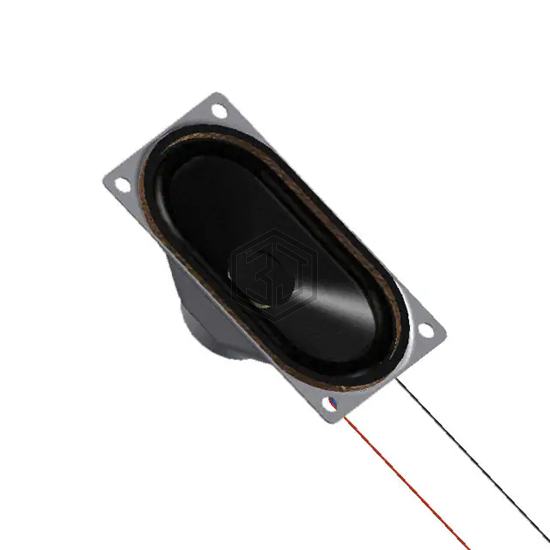

AS07108PO-LW152-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 3W TOP PORT 86DB. Key specifications: size / dimension 2.795" L x 1.614" W (71.00mm x 41.00mm), termination Wire Leads, ratings IEC 60601-1-8, power - max 5 W.
In Stock: 8,721
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 250Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 3 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | IEC 60601-1-8 |
| Termination | Wire Leads |
| Size / Dimension | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) |
