SPEAKER 8OHM 2W TOP PORT 86DB

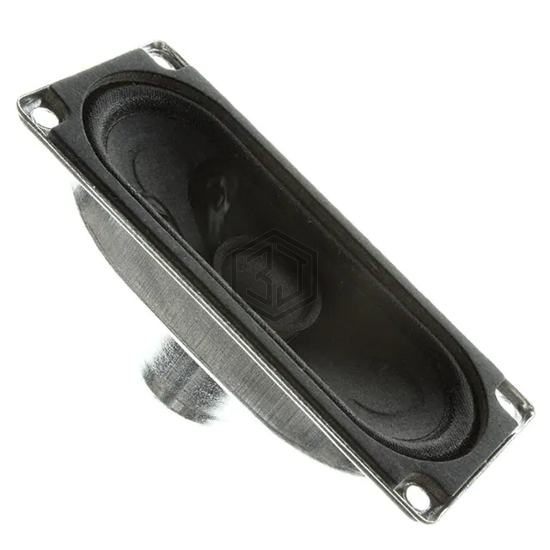

AS07008PO-2-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 2W TOP PORT 86DB. Key specifications: size / dimension 2.756" L x 1.201" W (70.00mm x 30.50mm), termination Solder Eyelet(s), power - max 5 W, frequency range 450 Hz ~ 20 kHz.
In Stock: 376
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 450 Hz ~ 20 kHz |
| Frequency - Self Resonant | 450Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.756" L x 1.201" W (70.00mm x 30.50mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
