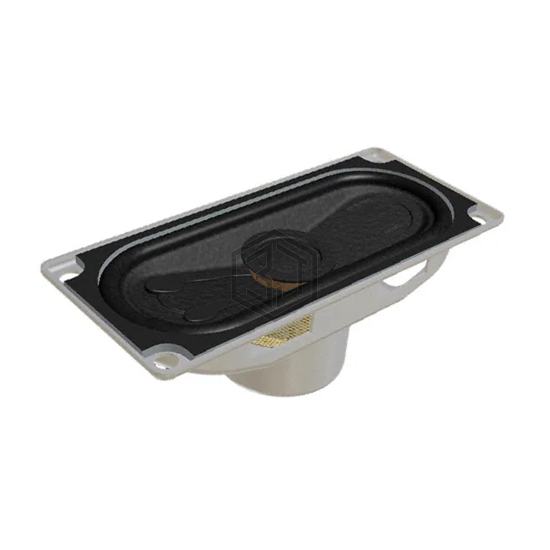

SPEAKER 4OHM 2W TOP PORT 86DB
AS07004PO-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 4OHM 2W TOP PORT 86DB. Key specifications: size / dimension 2.756" L x 1.201" W (70.00mm x 30.50mm), termination Solder Eyelet(s), power - max 5 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 763
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 300Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.756" L x 1.201" W (70.00mm x 30.50mm) |
| Height - Seated (Max) | 0.945" (24.00mm) |
