SPEAKER 8OHM 4W TOP PORT 95DB

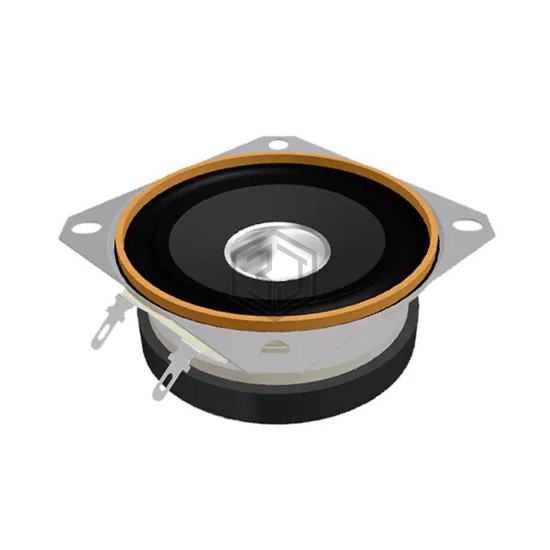

AS06608PS-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 4W TOP PORT 95DB. Key specifications: size / dimension 2.610" L x 2.610" W (66.30mm x 66.30mm), termination Solder Eyelet(s), power - max 5 W, frequency range 230 Hz ~ 12 kHz.
In Stock: 2,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 230 Hz ~ 12 kHz |
| Frequency - Self Resonant | 230Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 95.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 4 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.610" L x 2.610" W (66.30mm x 66.30mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
