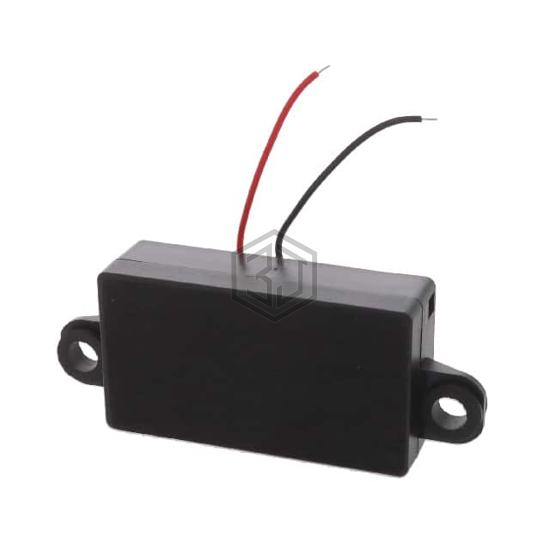

SPEAKER 2W 4 OHM 87DBA 650HZ
AS06004CO-C-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 2W 4 OHM 87DBA 650HZ. Key specifications: size / dimension 2.835" L x 1.299" W (72.00mm x 33.00mm), termination Wire Leads, power - max 4 W, frequency range 200 Hz ~ 20 kHz.
In Stock: 149
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 200 Hz ~ 20 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 2.835" L x 1.299" W (72.00mm x 33.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
Submit your RFQ for AS06004CO-C-R and get a quote within 24 hours.
