SPEAKER 1.5 W 4 OHM 100 DBA 350

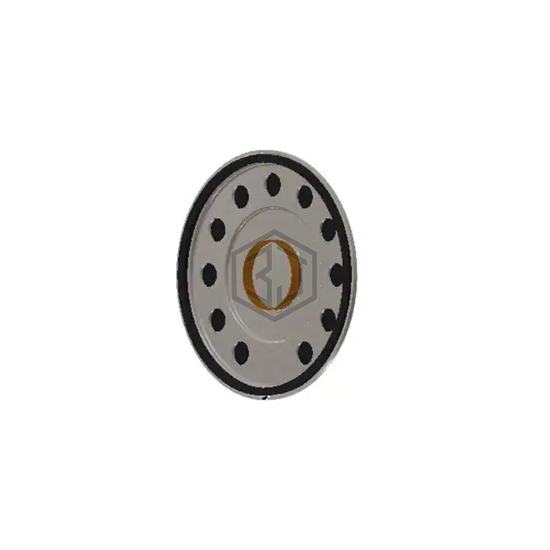

AS05004MR-3-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 1.5 W 4 OHM 100 DBA 350. Key specifications: size / dimension 1.969" Dia (50.00mm), termination Solder Pads, power - max 2 W, frequency range 350 Hz ~ 20 kHz.
In Stock: 51
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 350 Hz ~ 20 kHz |
| Frequency - Self Resonant | 350Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 100.00 |
| Efficiency - Testing | 1.5W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 0.283" (7.20mm) |
