SPEAKER 1W 16 OHM 78DBA 600HZ LE

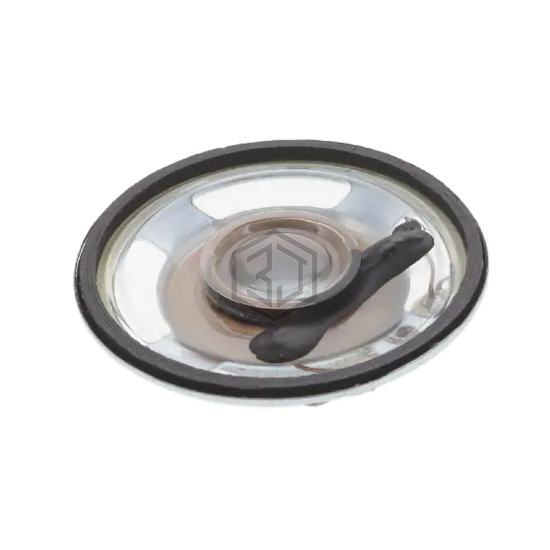

AS04016MR-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 1W 16 OHM 78DBA 600HZ LE. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Solder Eyelet(s), power - max 2 W, frequency range 600 Hz ~ 5.2 kHz.
In Stock: 966
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 5.2 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 16 Ohms |
| Efficiency - dBA | 78.00 |
| Efficiency - Testing | 100mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.417" (10.60mm) |
Submit your RFQ for AS04016MR-R and get a quote within 24 hours.
