SPEAKER 3W MAX 16 OHM 90DBA 550H

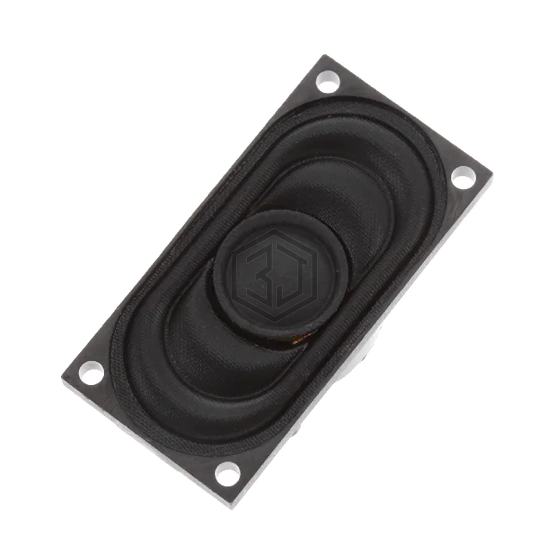

AS04016CO-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 3W MAX 16 OHM 90DBA 550H. Key specifications: size / dimension 1.575" L x 0.787" W (40.00mm x 20.00mm), termination Solder Eyelet(s), power - max 3 W, frequency range 550 Hz ~ 20 kHz.
In Stock: 69
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 550 Hz ~ 20 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 16 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
