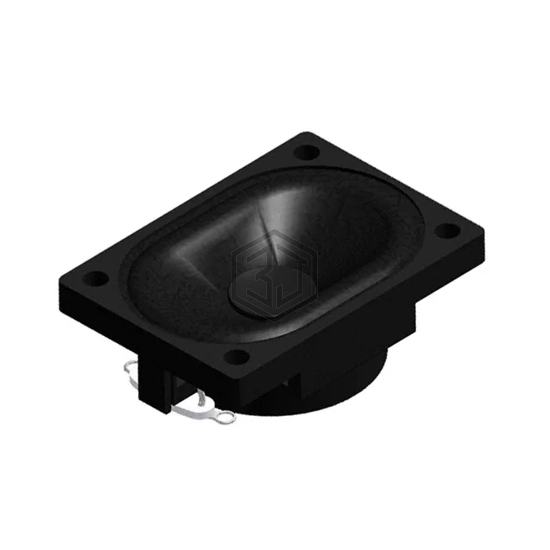

SPEAKER 4OHM 2W TOP PORT 86DB
AS04004PO-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 4OHM 2W TOP PORT 86DB. Key specifications: size / dimension 1.575" L x 1.118" W (40.00mm x 28.40mm), termination Solder Eyelet(s), power - max 4 W, frequency range 370 Hz ~ 20 kHz.
In Stock: 1,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 370 Hz ~ 20 kHz |
| Frequency - Self Resonant | 370Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Round, Rectangular Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" L x 1.118" W (40.00mm x 28.40mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
Submit your RFQ for AS04004PO-R and get a quote within 24 hours.
