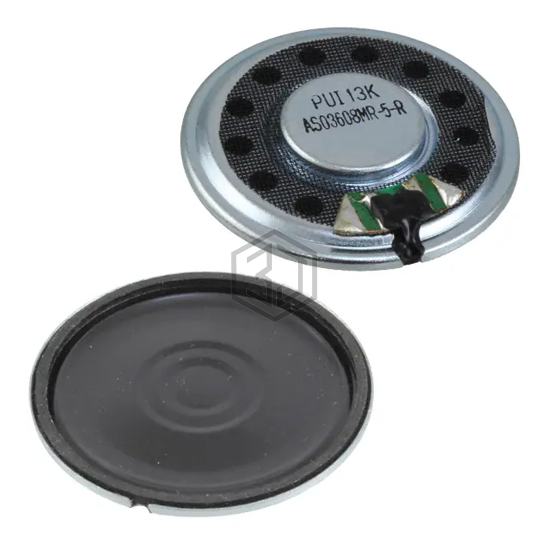

SPEAKER 8OHM 500MW TOP PORT 91DB
AS03608MR-5-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 500MW TOP PORT 91DB. Key specifications: size / dimension 1.417" Dia (36.00mm), termination Solder Pads, power - max 1 W, frequency range 500 Hz ~ 4.5 kHz.
In Stock: 3,591
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 4.5 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 91.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | N38 |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 0.193" (4.90mm) |
Submit your RFQ for AS03608MR-5-R and get a quote within 24 hours.
