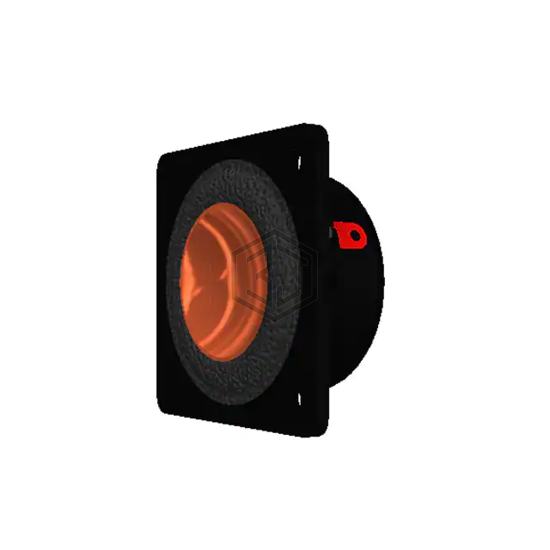

SPEAKER 1W 8 OHM 78 DBA 250 HZ
AS03608AS-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 1W 8 OHM 78 DBA 250 HZ. Key specifications: size / dimension 1.417" L x 1.417" W (36.00mm x 36.00mm), termination Quick Connect, ratings IEC 60601-1-8, power - max 2 W.
In Stock: 361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Full Range |
| Frequency Range | 150 Hz ~ 40 kHz |
| Frequency - Self Resonant | 250Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 78.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | IEC 60601-1-8 |
| Termination | Quick Connect |
| Size / Dimension | 1.417" L x 1.417" W (36.00mm x 36.00mm) |
| Height - Seated (Max) | 0.661" (16.80mm) |
Submit your RFQ for AS03608AS-R and get a quote within 24 hours.
