SPEAKER 1 W 4 OHM 83 DB 600 HZ

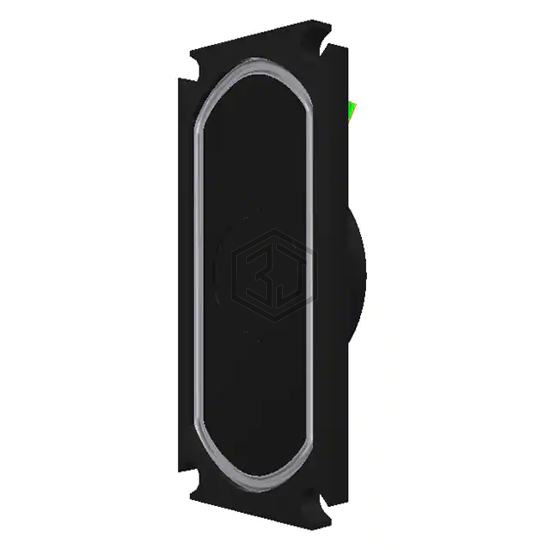

AS03504CO-2-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 1 W 4 OHM 83 DB 600 HZ. Key specifications: size / dimension 1.386" L x 0.638" W (35.20mm x 16.20mm), termination Solder Pads, power - max 2 W, frequency range 600 Hz ~ 20 kHz.
In Stock: 69
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 20 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 83.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.386" L x 0.638" W (35.20mm x 16.20mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
Submit your RFQ for AS03504CO-2-R and get a quote within 24 hours.
