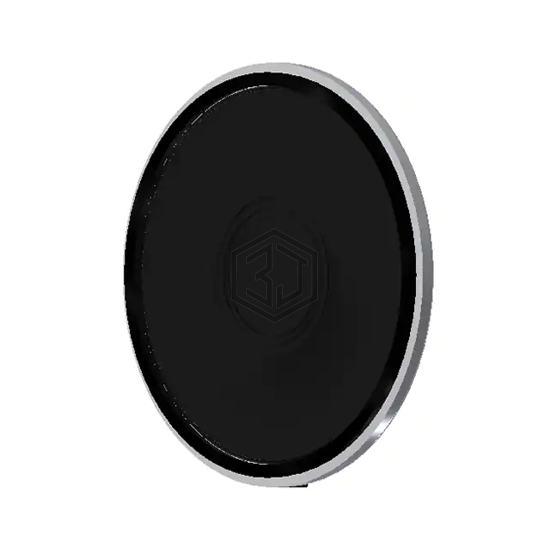

SPEAKER 28MM DIA 32 OHM
AS02832MR-2-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 28MM DIA 32 OHM. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Solder Pads, power - max 500 mW, frequency range 600 Hz ~ 6.5 kHz.
In Stock: 272
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 600 Hz ~ 6.5 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 32 Ohms |
| Efficiency - dBA | 91.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 250 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.173" (4.40mm) |
Submit your RFQ for AS02832MR-2-R and get a quote within 24 hours.
