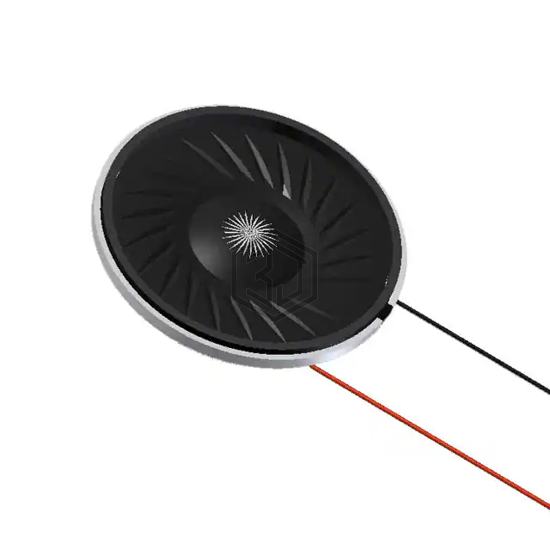

SPEAKER 8OHM 1W TOP PORT 80DB
AS02808MR-LW152-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 1W TOP PORT 80DB. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Wire Leads, ratings IEC 60601-1-8, power - max 1.5 W.
In Stock: 3,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 20 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 95.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | IEC 60601-1-8 |
| Termination | Wire Leads |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
Submit your RFQ for AS02808MR-LW152-R and get a quote within 24 hours.
