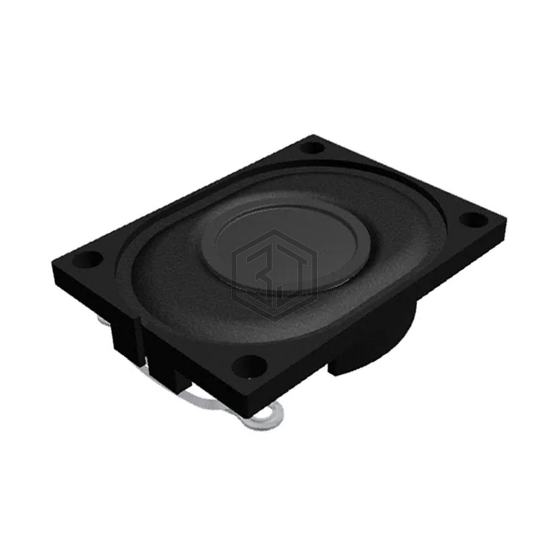

SPEAKER 8OHM 1W TOP PORT 80DB
AS02708CO-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 1W TOP PORT 80DB. Key specifications: size / dimension 1.063" L x 0.787" W (27.00mm x 20.00mm), termination Solder Eyelet(s), power - max 3 W, frequency range 250 Hz ~ 20 kHz.
In Stock: 10,695
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 250 Hz ~ 20 kHz |
| Frequency - Self Resonant | 750Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
