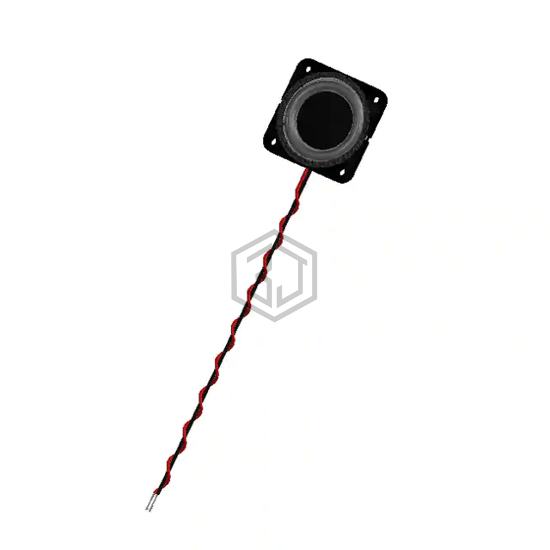

SPEAKER 2W 4 OHM 79 DB 350HZ
AS02704MS-N50-LW100-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 2W 4 OHM 79 DB 350HZ. Key specifications: size / dimension 1.063" L x 1.063" W (27.00mm x 27.00mm), termination Wire Leads, ingress protection IP67 - Dust Tight, Waterproof, power - max 3 W.
In Stock: 3,261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 20000 Hz |
| Frequency - Self Resonant | 350Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 79.00 |
| Efficiency - Testing | 1W/50cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | IEC 60601-1-8 |
| Termination | Wire Leads |
| Size / Dimension | 1.063" L x 1.063" W (27.00mm x 27.00mm) |
| Height - Seated (Max) | 0.260" (6.60mm) |
Submit your RFQ for AS02704MS-N50-LW100-R and get a quote within 24 hours.
