SPEAKER 2W 4 OHM 78DB 300HZ

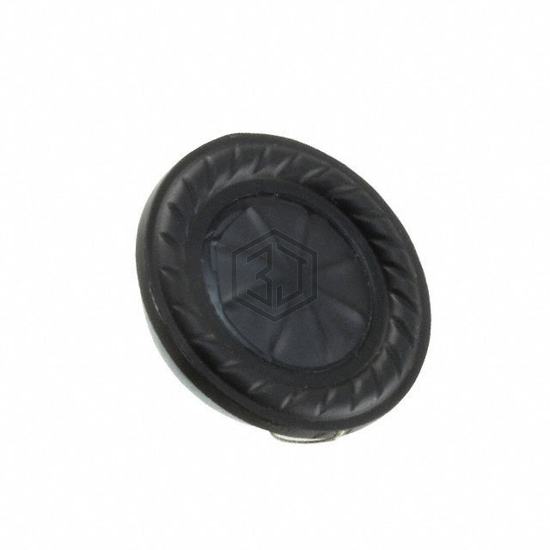

AS02204MR-N50-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 2W 4 OHM 78DB 300HZ. Key specifications: size / dimension 0.866" Dia (22.00mm), termination Wire Leads, power - max 2.5 W, frequency range 200 Hz ~ 20 kHz.
In Stock: 1,236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 200 Hz ~ 20 kHz |
| Frequency - Self Resonant | 300Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 79.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for AS02204MR-N50-R and get a quote within 24 hours.
