SPEAKER .7W 8 OHM 91 DB 500 HZ

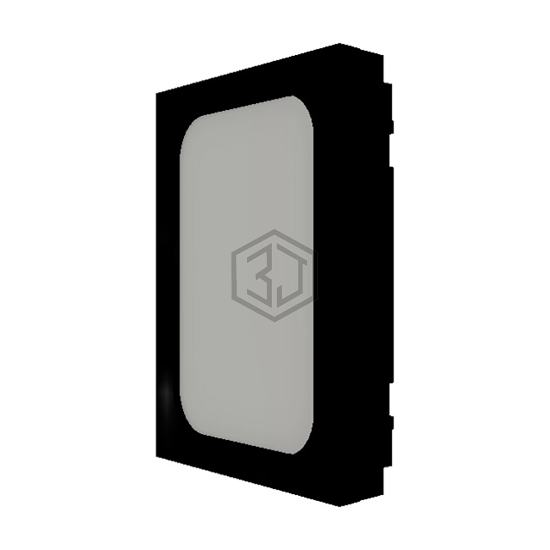

AS01508MS-SP15-WP-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER .7W 8 OHM 91 DB 500 HZ. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1 W.
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 500 Hz ~ 20 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 91.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sensitivity |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for AS01508MS-SP15-WP-R and get a quote within 24 hours.
