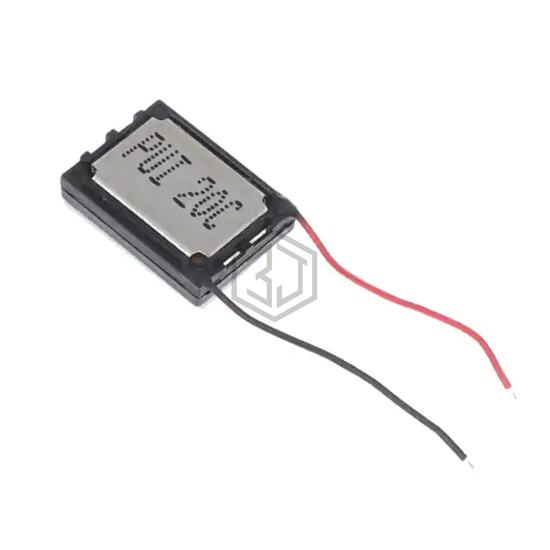

SPEAKER 8OHM 500MW TOP PORT 84DB
AS01508MO-SP11-LW25-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 500MW TOP PORT 84DB. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Wire Leads, power - max 1 W, frequency range 600 Hz ~ 20 kHz.
In Stock: 15,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 600 Hz ~ 20 kHz |
| Frequency - Self Resonant | 600Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 89.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sensitivity |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
Submit your RFQ for AS01508MO-SP11-LW25-R and get a quote within 24 hours.
