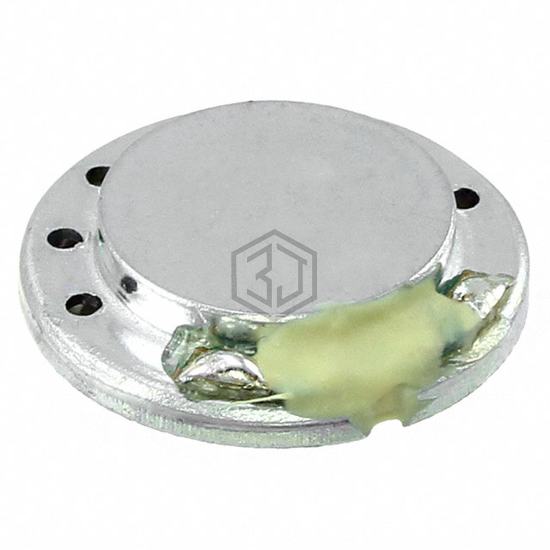

SPEAKER 8OHM 200MW TOP PORT 85DB
AS01308MR-2-R is a Speakers manufactured by PUI Audio, Inc.. SPEAKER 8OHM 200MW TOP PORT 85DB. Key specifications: size / dimension 0.512" Dia (13.00mm), termination Solder Pads, power - max 300 mW, frequency range 700 Hz ~ 5 kHz.
In Stock: 10,354
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 700 Hz ~ 5 kHz |
| Frequency - Self Resonant | 1100Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 200 mW |
| Power - Max | 300 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
