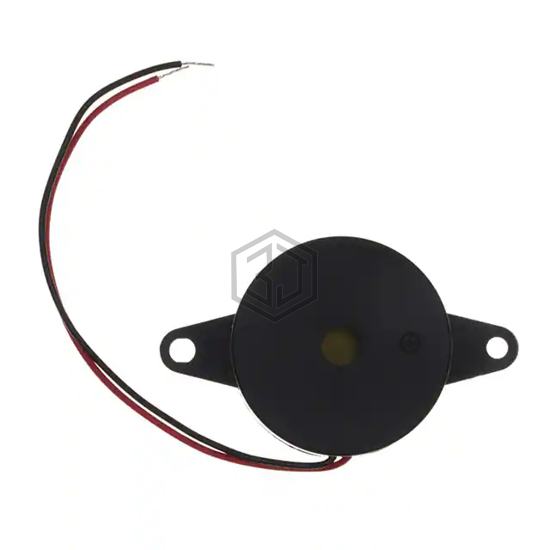

BUZZER PIEZO 9V 31MM FLANGE
AI-3135-TF-LW100-R is a Alarms, Buzzers, and Sirens manufactured by PUI Audio, Inc.. BUZZER PIEZO 9V 31MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 9 V, current - supply 8mA.
In Stock: 2,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 9 V |
| Voltage Range | 3 ~ 20V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 105dB @ 9V, 10cm |
| Current - Supply | 8mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.220" Dia (31.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for AI-3135-TF-LW100-R and get a quote within 24 hours.
