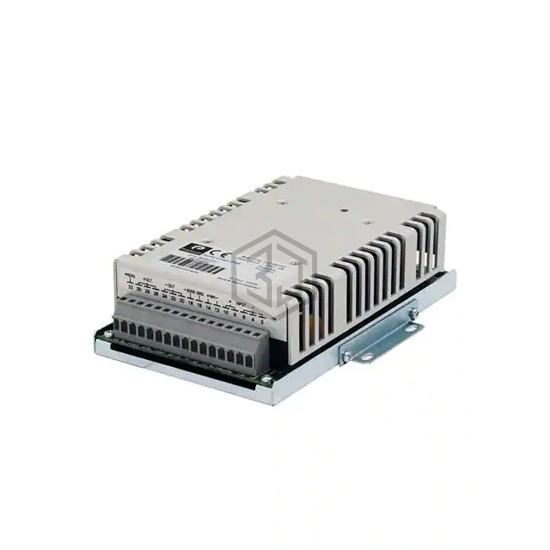

CRS-120 110/48V A TERMINAL BLOCK
6780A is a DC DC Converters manufactured by Premium PSU. CRS-120 110/48V A TERMINAL BLOCK. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 80°C, current - output (max) 2.92A, size / dimension 6.30" L x 3.94" W x 1.38" H (160.0mm x 100.0mm x 35.0mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 77V |
| Voltage - Input (Max) | 144V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.92A |
| Power (Watts) | 140W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -25°C ~ 80°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.30" L x 3.94" W x 1.38" H (160.0mm x 100.0mm x 35.0mm) |
| Approval Agency | CE, UKCA |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 6780A and get a quote within 24 hours.
