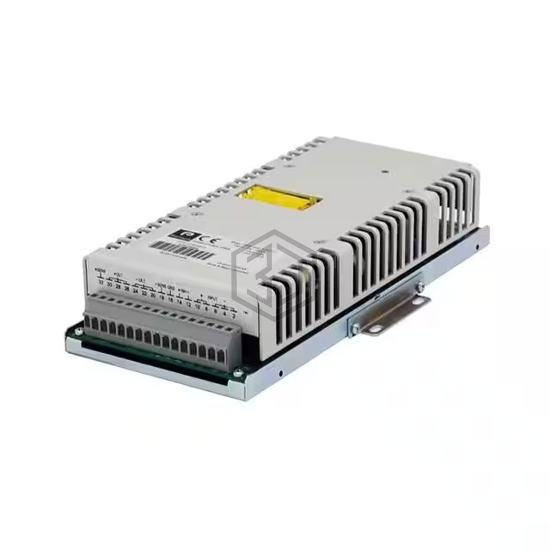

CRS-240 12/48 TERMINAL CLIP
6354D is a DC DC Converters manufactured by Premium PSU. CRS-240 12/48 TERMINAL CLIP. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 80°C, current - output (max) 4.17A, size / dimension 8.66" L x 3.94" W x 1.38" H (220.0mm x 100.0mm x 35.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 15V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.17A |
| Power (Watts) | 200W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial) |
| Efficiency | 82% |
| Operating Temperature | -25°C ~ 80°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.66" L x 3.94" W x 1.38" H (220.0mm x 100.0mm x 35.0mm) |
| Approval Agency | CE, UKCA |
| Standard Number | 60950-1; 62368-1 |
