CONTACT SPRING LOADED SLDR CUP

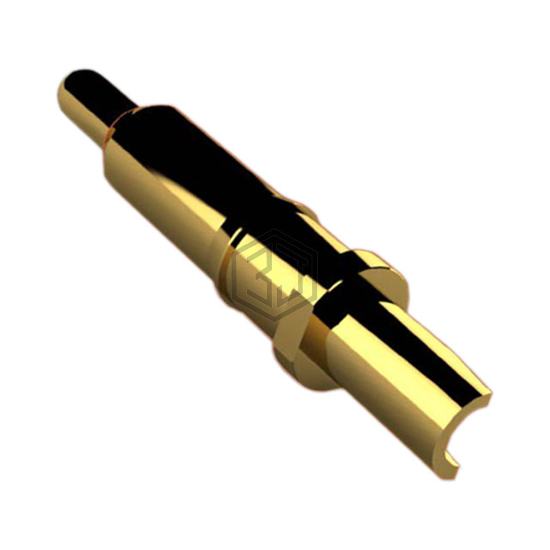

90168-AS is a Contacts, Spring Loaded (Pogo Pins), and Pressure manufactured by Preci-Dip. CONTACT SPRING LOADED SLDR CUP. Key specifications: mounting type Through Hole, Solder Cup, contact material Brass Alloy.
In Stock: 7,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Mounting Type | Through Hole, Solder Cup |
| Maximum Working Height | 0.311" (7.90mm) |
| Recommended Working Height | - |
| Minimum Working Height | 0.248" (6.30mm) |
| Pad Layout Dimension | Circular - 0.083" (2.12mm) (TH) |
| Operating Force - Initial | 35.69gf |
| Operating Force - Mid Compression | 112.17gf |
| Plunger Size | 0.038" (0.96mm) Dia |
| Features | - |
| Mating Cycles | 40000 |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
