CONTACT SPRING LOADED SLDR CUP

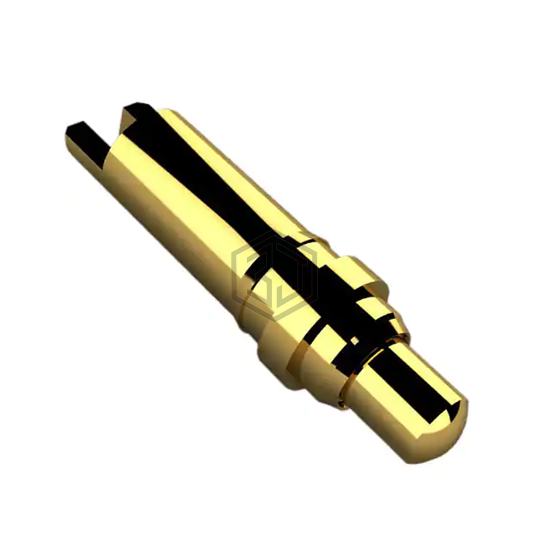

90166-AS is a Contacts, Spring Loaded (Pogo Pins), and Pressure manufactured by Preci-Dip. CONTACT SPRING LOADED SLDR CUP. Key specifications: mounting type Through Hole, Solder Cup, contact material Brass Alloy.
In Stock: 2,925
| Attribute | Value |
|---|---|
| Product Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Mounting Type | Through Hole, Solder Cup |
| Maximum Working Height | 0.236" (6.00mm) |
| Recommended Working Height | - |
| Minimum Working Height | 0.193" (4.90mm) |
| Pad Layout Dimension | Circular - 0.059" (1.50mm) (TH) |
| Operating Force - Initial | 50.99gf |
| Operating Force - Mid Compression | 112.17gf |
| Plunger Size | 0.042" (1.07mm) Dia |
| Features | - |
| Mating Cycles | 40000 |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 90166-AS and get a quote within 24 hours.
