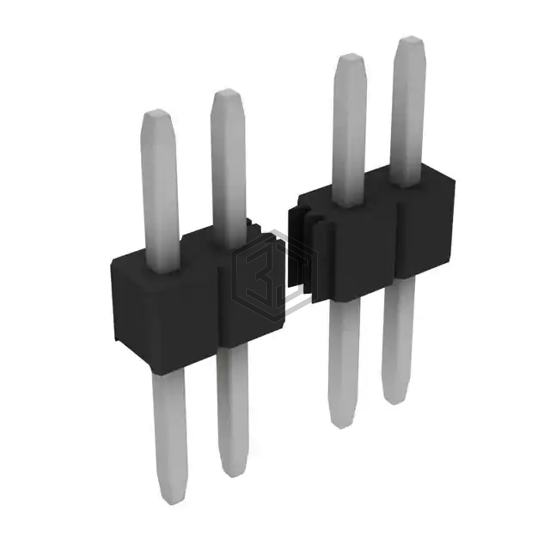

CONN HEADER VERT 31POS 2.54MM
890-80-031-10-004101 is a Rectangular Connectors - Headers, Male Pins manufactured by Preci-Dip. CONN HEADER VERT 31POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 150VDC, contact material Brass.
In Stock: 2,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 31 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.587" (14.91mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.805" (20.44mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 150VDC |
Submit your RFQ for 890-80-031-10-004101 and get a quote within 24 hours.
